Inset door stop guide

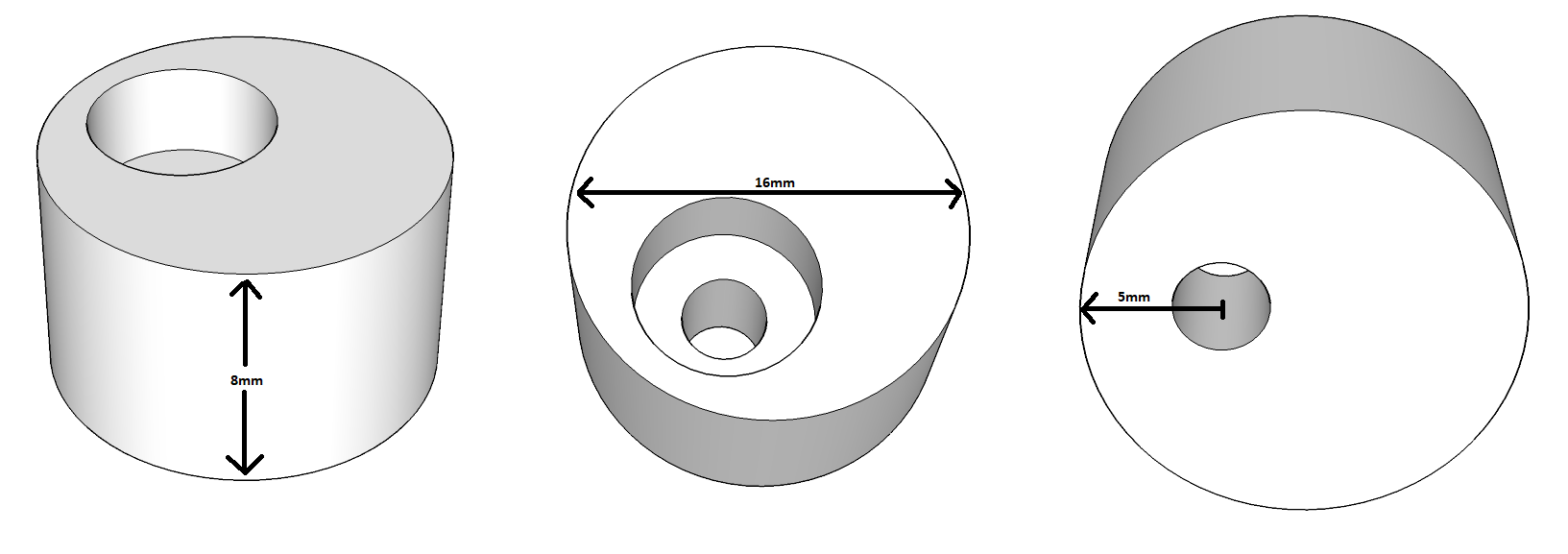

A technical drawing of a cylindrical object with three views, showing dimensions: height 8mm, outer diameter 16mm, and inner diameter 5mm.
A technical drawing of a cylindrical object with three views, showing dimensions: height 8mm, outer diameter 16mm, and inner diameter 5mm.

  1. From the front edge of the cabinet, drill a pilot hole using the below measurements.
    Door Width + 7mm* = Pilot Hole location e.g. 18mm door + 7mm = 25mm
    *7mm gives you 2mm of adjustment

  2. Screw the door stop in place with the provided screw, do not fully tighten.

  3. Adjust the door stop so the door sits fits flush with the cabinet frame.

  4. Tighten the screw so the door stop is held firmly in place and doesn't move.
